Apple Patent for a Possible Future Drone Device Was Originally Filed in Singapore

Apple’s granted patent covers drones, systems, and methods for pairing/unpairing UAVs to/from UAV controllers. Embodiments may include various methods for pairing/unpairing UAVs to/from UAV controllers (UACs).

For example, in some embodiments, a wireless device, e.g., a UE such as a UAV and/or a UAC, may initiate, based on a triggering condition, an unpairing of the UAV from a host UAC, e.g., a UAC that is currently paired to the UAV.

Additionally, the wireless device may receive, from a network (e.g., from a network entity, such as an AMF), a configuration update that may confirm the unpairing of the UAV from the host UAC.

In some embodiments, the triggering condition may include any, any combination of, and/or all of (e.g., at least one of) the UAV moving from a location designated as controlled by the host UAC, the UAV moving into a location in which the host UAC is restricted from controlling the host UAV, and/or the host UAC losing signaling capabilities. In some embodiments, the configuration update may include any, any combination of, and/or all of (e.g., at least one of) a cause code, an identifier associated with the UAV, an identifier associated with the host UAC, an identifier associated with an unmanned aerial system (UAS) (e.g., where the UAS includes the UAV and the host UAC), and/or an identifier associated with a target UAC.

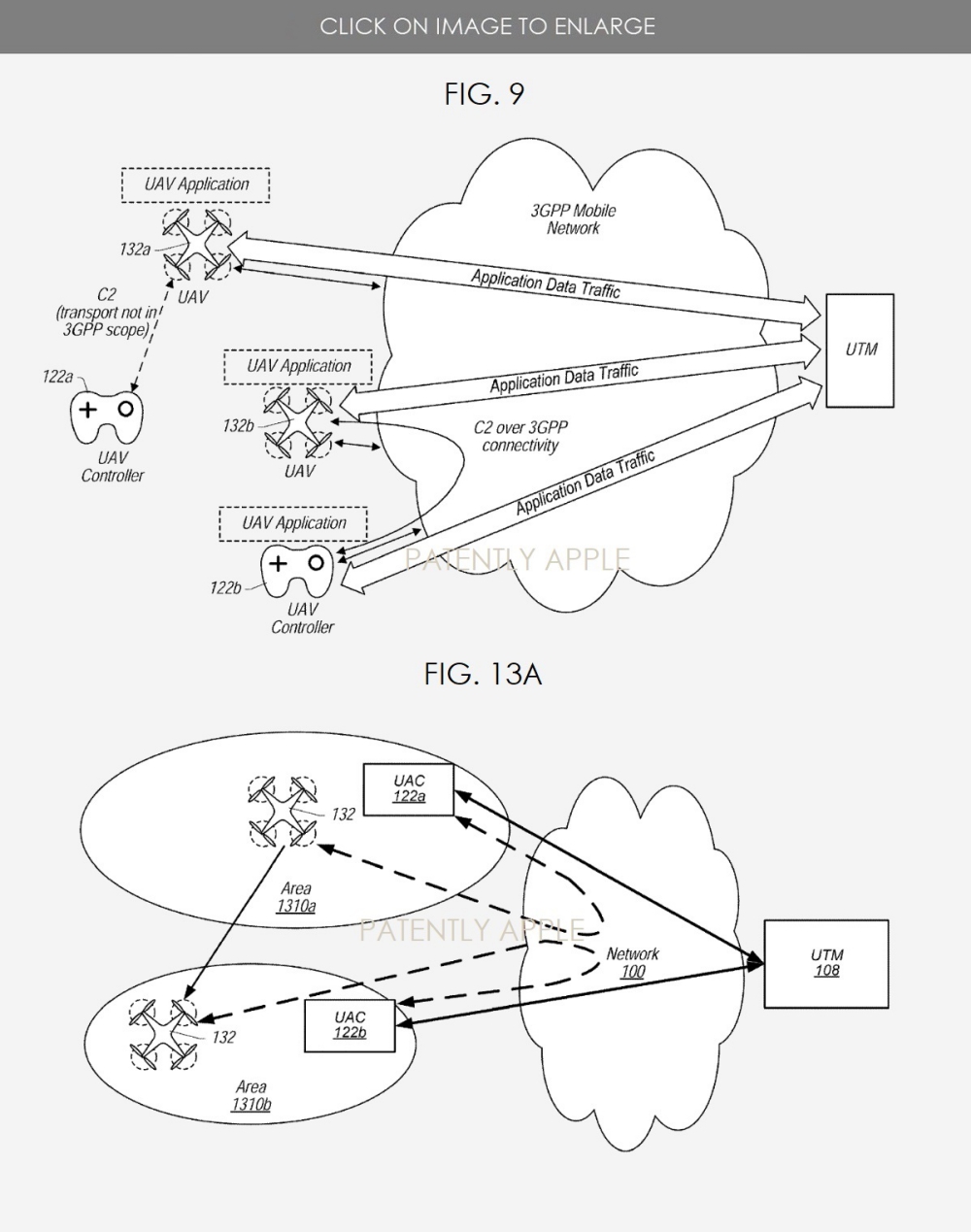

Apple’s patent FIG. 9 below FIG. 9 illustrates an example (and simplified) block diagram of unmanned aerial system (UAS). As shown, the example UAS includes one or more unmanned aerial vehicles (UAVs), a first UAV 132a and a second UAV 132b. The first UAV 132a may be controlled by a first UAV controller 122a operated by a user, and one or both of the first and second UAVs 132a and 132b may be controlled by a second UAV controller 122b operated by a user. The controllers 122a and 122b may transmit command and control (C2) signals to the UAV’s to control their operation, e.g., to control their movement. Example C2 signals include signals to steer the UAV’s, to move the UAV up or down, to adjust the speed of the UAV’s, etc..

Apple’s patent FIG. 13A above illustrates an example of an Unmanned Traffic Management (UTM) system initiating handover of an unmanned aerial vehicle (UAV) from a first unmanned aerial controller (UAC) to a second UAC.

For more details, review Apple’s granted patent US 11523323 B2.

Patently Apple also posted three additional IP reports over time that are specifically related to a possible future Drone device that you could review here: 0102 & 03.

In some applications, a UAV is controlled by a human user (e.g., a user on the ground), where the user uses a UAV controller (UAC) to remotely control the operation of the UAV. In some implementations, the UAC may communicate with the UAV over an existing cellular network. One issue that may arise is what information may be required for the existing cellular network to track and/or control the UAV and/or how to track the UAC. Therefore, improvements in the field are desired.

Source: Patently Apple
