The world first will be presented for the first time to the specialist audience at the XPONENTIAL Trade Fair taking place in Dallas (USA) in May. Thus, the German engine manufacturer 3W-International
is expanding its range of drive products for UAVs by a further engine sector. Just as the two-stroke engines already in use in the marketplace, the new 3W-180 SRE Hybrid Wankel engine can be fuelled by petrol or kerosene, too.
“In the past, many interested parties at trade fairs and congresses have asked us about Wankel engines” recalled Karsten Schudt, managing partner of 3W-International GmbH.
For this reason, Schudt and his development team decided to expand the product segment with Wankel engine technology. In doing so, it was clear right from the start that the new engines had to fit in with the philosophy of 3W-International GmbH.
“We wanted a high-quality, fuel consumption-optimized engine which would demonstrate an outstanding power-to-weight ratio”, recalled Schudt.

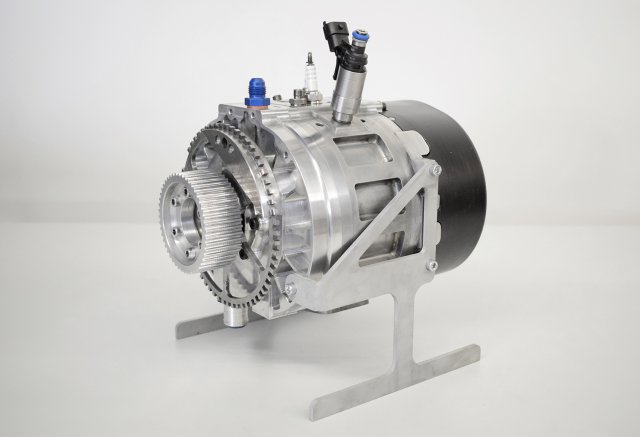

The 3W-180 SRE Hybrid has 180 ccm and as a short engine weighs 6.8 kg. In the high power version, at 7500 rpm it delivers 38.5 hp (nominal power 28 hp at 6000 rpm). From this there results a power-to-weight ratio of 5.66 hp/kg, with a fuel consumption of 340g/KW at full load.
The weight rises to 9.5 kg when the engine is fitted with an electric motor (starter generator). The generator also charges the super capacitors which turn the Wankel engine into a hybrid drive. Super capacitors are well-suited to hybrid applications in aviation due to their weight and fast charging and discharging behaviour.
“We are very proud that we are able to offer our customers an additional service with this modern and sustainable technology which is available at short notice” Schudt was pleased to say. The hybrid Wankel engine can feed 15KW, depending on the capacity of the storage system, into the system for a time (for example, 30-60s). This additional power can be used when starting a helicopter or for the acceleration of a fixed wing aircraft. “Thus our customers always have a power reserve on call”, confirmed Schudt.
The 3W-180 SRE Hybrid is equipped with two independent cooling systems. A water cooling circuit undertakes the cooling of the engine housing, a second, oil cooling circuit, undertakes the internal cooling of the piston. This is a fundamental prerequisite for a drive system in aviation applications for which continuous power is also a fundamental prerequisite. Here the thermal stability, which gives added value to the 3W-180 SRE Hybrid, is of crucial importance.
In a further expansion stage, the Wankel engine can also be equipped with two drive pulleys. Through the doubling of the swept volume, the power of the naturally aspirated engine is doubled to 76 hp in the high performance variant with a short weight of 10.5Kg. This engine variant is also intended as a hybrid version. In the future, a variant with a turbocharger which is primarily intended for height compensation will also be offered.
“We can also supply the Wankel engine as a complete drive unit similar to our two-stroke engines. This means that the customer receives the engine equipped with all additional systems completely in accordance with his individual requirements”, explained Schudt.
In accordance with the engine philosophy of 3W-International, the 3W-180 SRE Hybrid can be used as a petrol or as a Heavy Fuel (HF) engine. As an HF engine, the fuels JET A-I, JP-5 or JP-8 can be used.
“For the HF versions we provide high performance fuel injection which leads to a further reduction in fuel consumption”, explained Schudt. For petrol operation, intake manifold injection is provided for the fuel injection.
At XPONENTIAL in Dallas in May, 2017, 3W-International will present the hybrid Wankel engine for the first time to the specialist audience on Stand 3131.
“We are looking forward to being able to introduce a new engine to our customers which, from a technological perspective, offers unparalleled advantages in terms of fuel consumption, drive performance and reliability”, said Schudt looking into the future.
With more than 35 years experience in designing, manufacturing and testing 2-stroke engines, 3W-International GmbH has developed and patented the newest generation of Heavy Fuel (HF) engines for the Unmanned Aerial Vehicle (UAV) industry.
The quality of 3W-engines stems from several factors. Technical expertise, long-term experience, tradition and state of the art production are the reasons for one of the highest quality levels in the industry. 3W is opposed to manufacturing abroad, so customers can be sure every engine is of German quality.
From R&D, prototyping, purchasing, manufacturing, calibration to in-time delivery, 3W guarantees constant and permanent quality control. Every manufacturing step is traceable. Employees are personally responsible for the fulfilment of 3W quality standards. Component suppliers and partners share these standards and guarantee these quality requirements
